Cerval Industries

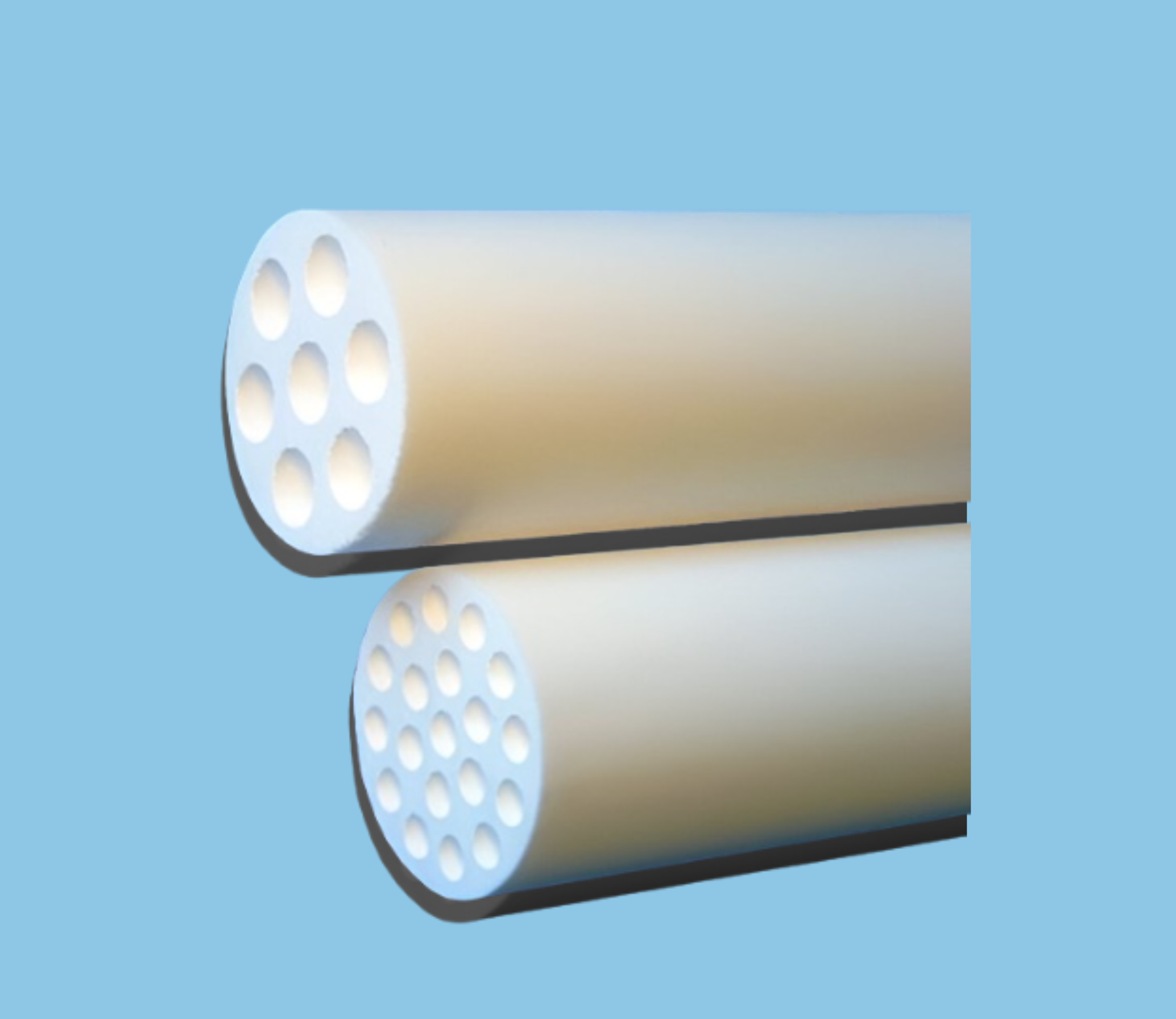

Ceramic Tubular Membrane

Our ceramic tubular membranes are designed to provide high-performance filtration and separation solutions across various industries. Constructed from advanced ceramic materials, these membranes offer exceptional durability and resistance to harsh operating conditions. The tubular design enhances their ability to handle high flow rates and pressures, making them suitable for demanding applications. These membranes are characterized by their superior chemical and thermal resistance, enabling them to operate effectively in extreme environments. Their porous structure ensures efficient filtration, with high permeability and low fouling rates, which contributes to extended service life and reduced maintenance needs. Ideal for use in water treatment, chemical processing, and industrial applications, our ceramic tubular membranes deliver reliable and consistent performance, optimizing filtration processes and enhancing overall operational efficiency. Available in various sizes and configurations, they can be tailored to meet specific application requirements, ensuring robust and long-lasting filtration solutions.

Specification	Details
Materials	High-Grade Ceramic
Temperature Resistance	Up to 1200°C
Mechanical Strength	Durable with high compressive strength
Chemical Resistance	Excellent resistance to chemical and thermal degradation
Applications	Water Treatment, Chemical Processing, Industrial Filtration
Design	Tubular Structure for High Flow Rates
Features	High Permeability, Low Fouling, Customizable Sizes

Ceramic Technical Properties

Properties	Units	92%	95%	99%
Bulk Density	g/cm³	3.4	3.6	3.88
Maximum Use Temperature	°C	1300	1400	1600
Water Absorption	%	0	0	0
ROHS Hardness	-	≥81	≥84	≥89
Flexural Strength	Mpa	340	350	550
Compressive Strength	Mpa	270	300	377
Coefficient of thermal expansion	1X10^-6/℃	7.2	7.5	7.9
Coefficient of thermal conductivity	W/m.K	12	15	17
Thermal Shock Resistance	℃	270	250	200
Dielectricity constant	-	8	9	0.7
Dielectric strength	ac-kV/mm(ac V/mil)	8	8.3	8.7
Volume Resistivity	ohm-cm	>10^11	>10^12	>10^14

Characteristics

Stability - Ceramic membranes are stable over a wide pH range, and are resistant to high pressure and high temperatures..

Chemical resistance - Ceramic membranes are chemically resistant and inert, which makes them good for filtration.

Permeability - Ceramic membranes have high water permeability.

Pore size - Ceramic microfiltration membranes have pore sizes ranging from 0.05 to 1 micron. Mechanical strength - Ceramic membranes have robust mechanical strength.
